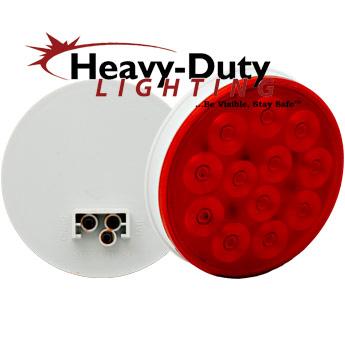

HD40012RSD (12 LED)
Technical Specifications:
4" Round RED Stop / Tail / Turn
Optional Accessories:
LED's - 12 Super-Duty Square Red Diodes
Diameter - 4.29"
Depth - 1.64"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 140 mA
Amp Draw Tail - 11mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:
LED's - 12 Super-Duty Square Amber Diodes
Diameter - 4.29"
Depth - 1.64"
Voltage Range - 7.5 - 14 VDC
Amp Draw Park/Turn - 129 mA
Amp Draw Tail - 19mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031

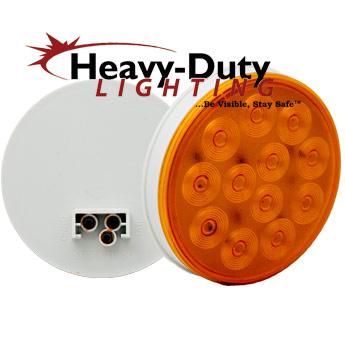

HD40012YSD (12 LED)
4" Round AMBER Park / Turn

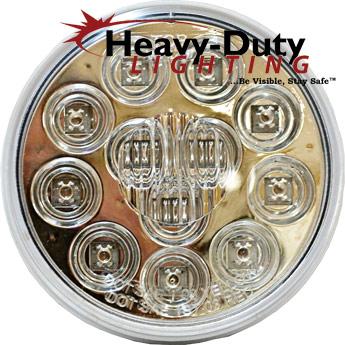

HD40012RCSDM (12 LED)
4" Round RED diode
CLEAR LENS Stop / Tail / Turn
Technical Specifications:
Optional Accessories:
LED's - 12 Super-Duty Square Red Diodes
Diameter - 4.29"
Depth - 2.09"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 140 mA
Amp Draw Tail - 11mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031

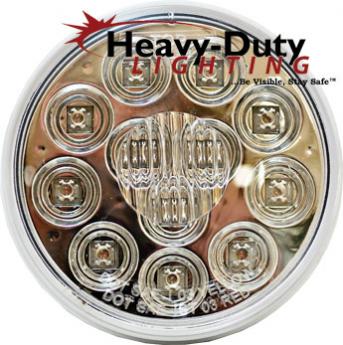

HD40012YCSDM (12 LED)
Technical Specifications:
Optional Accessories:
4" Round AMBER diode
CLEAR LENS Park / Turn
LED's - 12 Super-Duty Square Amber Diodes
Diameter - 4.29"
Depth - 2.09"
Voltage Range - 7.5 - 14 VDC
Amp Draw Park/Turn - 129 mA
Amp Draw Tail - 19mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031

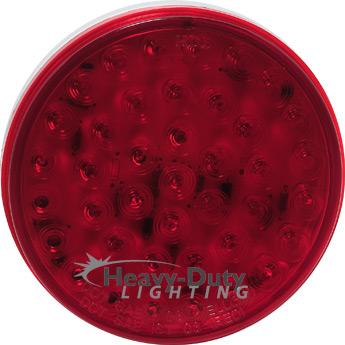

HD40040R (40 LED)

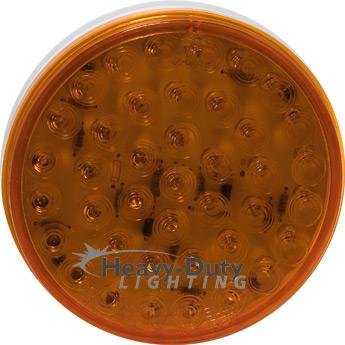

HD40040Y (40 LED)
Technical Specifications:
Optional Accessories:
LED's - 40 5mm Red Diodes
Diameter - 4.29"
Depth - 1.38"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 270mA
Amp Draw Tail - 30mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:
LED's - 40 5mm Amber Diodes
Diameter - 4.29"
Depth - 1.38"
Voltage Range - 7.5 - 14 VDC
Amp Draw Park/Turn - 240mA
Amp Draw Tail - 20mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031
4" Round RED Stop / Tail / Turn
4" Round AMBER Park / Turn
HD40040RC (40 LED)
4" Round RED diode
CLEAR LENS Stop / Tail / Turn
LED's - 40 5mm Red Diodes
Diameter - 4.29"
Depth - 1.38"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 270mA
Amp Draw Tail - 30mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:

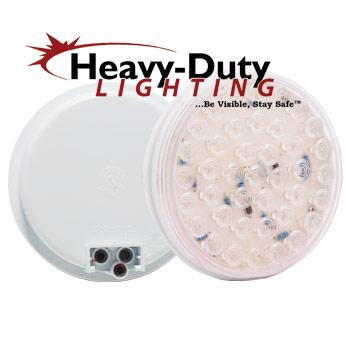

HD40040YC (40 LED)
4" Round AMBER diode
CLEAR LENS Park / Turn
LED's - 40 5mm Amber Diodes
Diameter - 4.29"
Depth - 1.38"
Voltage Range - 7.5 - 14 VDC
Amp Draw Park/Turn - 240mA
Amp Draw Tail - 20mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:

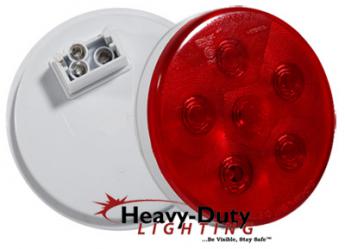

HD40006RSD (6 LED)

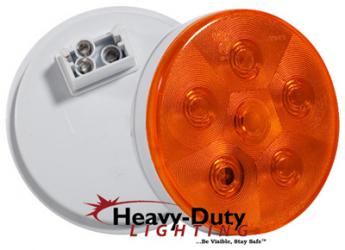

HD40006YSD (6 LED)

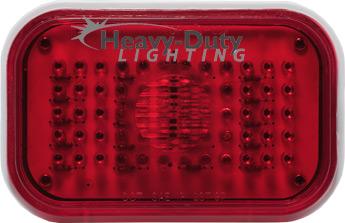

HD50060R (60 LED)

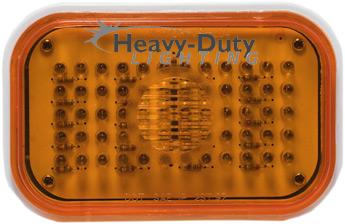

HD50060Y (60 LED)
Technical Specifications:
Technical Specifications:
Technical Specifications:
Technical Specifications:
Optional Accessories:
Optional Accessories:
Optional Accessories:
Optional Accessories:
LED's - 6 Super-Duty Square Red Diodes
Diameter - 4.24"
Depth - 1.87"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 120mA
Amp Draw Tail - 10mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031
LED's - 6 Super-Duty Square Amber Diodes
Diameter - 4.24"
Depth - 1.87"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 115mA
Amp Draw Tail - 17mA
Grommet # HD40095G
Chrome Grommet Cover # HD40096PC
Security Flange # HD40099SS
Connectors # HD00030 & HD00031
LED's - 60 5mm Red Diodes
Width - 5.28"
Height - 3.43"
Depth - 1.97"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 550mA
Amp Draw Tail - 60mA
Grommet # HD50095G
Connectors # HD00030 & HD00031
LED's - 60 5mm Amber Diodes
Width - 5.28"
Height - 3.43"
Depth - 1.97"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 530mA
Amp Draw Tail - 50mA
Grommet # HD50095G
Connectors # HD00030 & HD00031
5" Rectangular AMBER Park / Turn
5" Rectangular RED Stop / Tail / Turn
4" Round AMBER Park / Turn
4" Round RED Stop / Tail / Turn
LED's - 60 5mm Red Diodes
Width - 6.5"
Height - 2.28"
Depth - 1.73"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 720mA
Amp Draw Tail - 40mA
Grommet # HD60095G
Chrome Grommet Cover # HD60096PC
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:

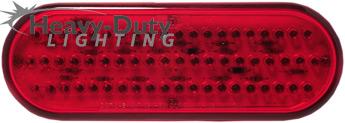

HD60060R (60 LED)
6" Oval RED Stop / Tail / Turn

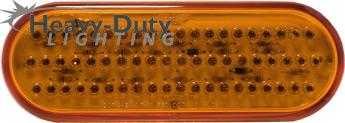

HD60060Y (60 LED)
6" Oval AMBER Park / Turn
LED's - 60 5mm Amber Diodes
Width - 6.5"
Height - 2.28"
Depth - 1.73"
Voltage Range - 7.5 - 14 VDC
Amp Draw Park/Turn - 620mA
Amp Draw Tail - 20mA
Grommet # HD60095G
Chrome Grommet Cover # HD60096PC
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:
LED's - 15 Super-Duty Square Red Diodes
Width - 6.5"
Height - 2.3"
Depth - 1.57"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 200mA
Amp Draw Tail - 10mA
Grommet # HD60095G
Chrome Grommet Cover # HD60096PC
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:

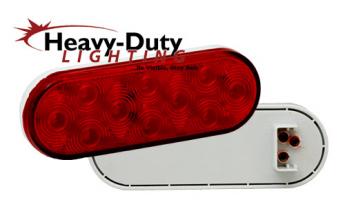

HD60015RSD (15 LED)
6" Oval RED Stop / Tail / Turn

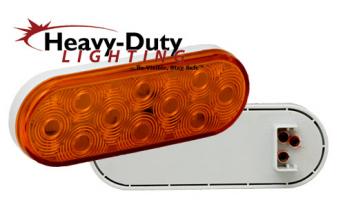

HD60021YSD (21 LED)
6" Oval AMBER Park / Turn
LED's - 21 Super-Duty Square Amber Diodes
Width - 6.5"
Height - 2.3"
Depth - 1.57"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 185mA
Amp Draw Tail - 20mA
Grommet # HD60095G
Chrome Grommet Cover # HD60096PC
Connectors # HD00030 & HD00031
Technical Specifications:
Optional Accessories:

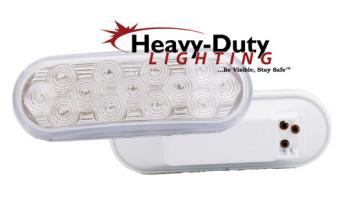

HD60013RCSDM (13 LED)
6" Oval RED diode
CLEAR LENS Stop / Tail / Turn
Technical Specifications:
Optional Accessories:
LED's - 13 Super-Duty Square Red Diodes
Width - 6.5"
Height - 2.28"
Depth - 2.2"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 200mA
Amp Draw Tail - 20mA
Grommet # HD60095G
Chrome Grommet Cover # HD60096PC
Connectors # HD00030 & HD00031

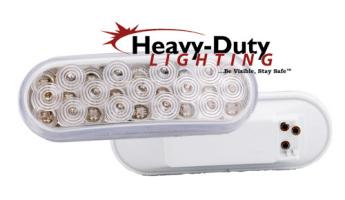

HD60027YCSDM (27 LED)
6" Oval AMBER diode
CLEAR LENS Stop / Tail / Turn
Technical Specifications:
Optional Accessories:
LED's - 27 Super-Duty Square Amber Diodes
Width - 6.5"
Height - 2.28"
Depth - 2.2"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 320mA
Amp Draw Tail - 20mA
Grommet # HD60095G
Chrome Grommet Cover # HD60096PC
Connectors # HD00030 & HD00031
Technical Specifications:

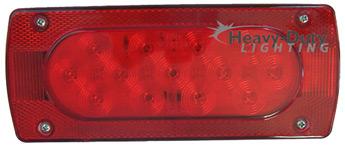

HD83019TR (19 LED)
Rectangular RED Stop / Tail / Turn
Trailer Light w/right-hand Side Marker
LED's - 13 Super-Duty Square Red STT Diodes
Plus 6 Super-duty Square Red Side Marker Diodes
Width - 8.66"
Height - 3.15"
Depth - 2.25"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 360mA
Amp Draw Tail - 40mA
Pre-wired / No Connector Required
Mounting Hardware Included

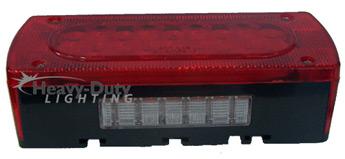

HD83031TR (31 LED)
Technical Specifications:
Rectangular RED Stop / Tail / Turn
Trailer Light w/right-hand Side Marker & License Light
LED's - 13 Super-Duty Square Red STT Diodes
Plus 6 Super-duty Square Red Side Marker Diodes
Plus 12 Super-Duty Square White License Diodes
Width - 8.66"
Height - 3.15"
Depth - 2.25"
Voltage Range - 7.5 - 14 VDC
Amp Draw Stop/Turn - 360mA
Amp Draw Tail - 40mA
Amp Draw License - 240mA
Pre-wired / No Connector Required
Mounting Hardware Included
